Understanding the OSI Model as a Backend Engineer

4min

Enock Omondi

As backend engineers, we spend most of our time writing APIs, designing databases, and shipping business logic. It is always easy to assume that networking is "someone else's problem" yet when systems fail, the root cause is often not in the code itself, but rather somewhere in the layers beneath it.

This is where the OSI model becomes more than just a theoretical concept but rather a practical mental framework for debugging, performance tuning, security and system design.

What the OSI Model Really Is

The Open Systems Interconnection (OSI) model is a conceptual framework developed to standardize network communication into seven distinct layers that describes how data travels from one system to another across a network.

Therefore, understanding the OSI model is important because backend systems live and die by networks and the OSI model is the mental map that explains how data moves, where things break, and how to design reliable systems.

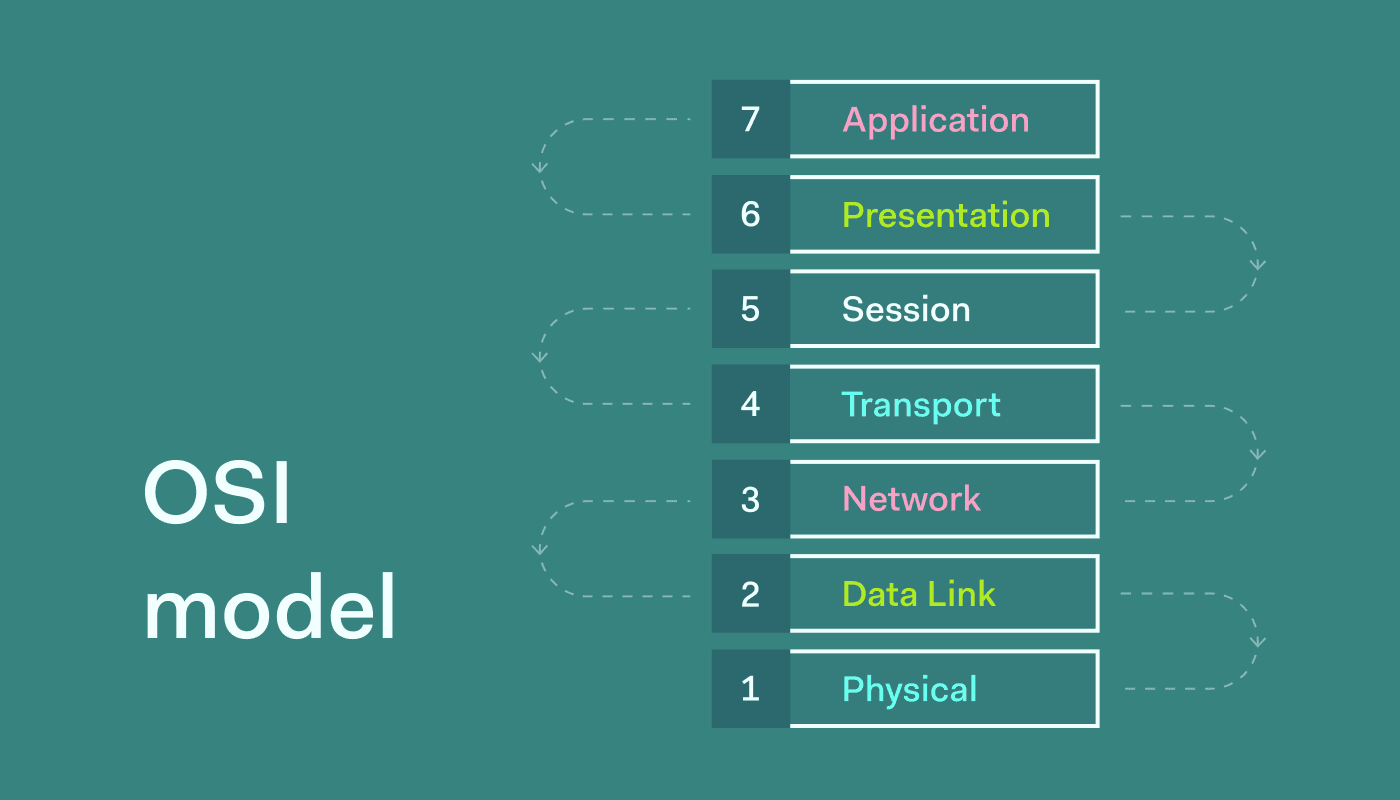

7 Layers of The OSI Model

Layer 7: Application – HTTP/FTP/gRPC, APIs, business logic

Layer 6: Presentation – Encryption, serialization

Layer 5: Session – Connection management, TLS

Layer 4: Transport – TCP/UDP, ports, reliability

Layer 3: Network – IP addressing, routing

Layer 2: Data Link – MAC addresses, switching, frames

Layer 1: Physical – Cables, signals, hardware

Backend Engineers Live at Layer 7, but depends on the others

Most backend work happens at the Application layer:

  • HTTP and REST APIs
  • GraphQL and gRPC
  • Authentication and authorization
  • Business logic and validation

However, when an API becomes unreachable, timeout, or behaves inconsistently, the issue may lie in:

  • Layer 4 (Transport): TCP timeouts, port exhaustion
  • Layer 3 (Network): DNS failures, routing issues
  • Layer 6 (Presentation): TLS misconfiguration

Therefore, understanding the OSI model prevents a common mistake: assuming every failure is a code bug.

Debugging with OSI

The OSI model turns debugging from guesswork into a structured process. So instead of asking: "Why is the API down?", you ask:

  • Can the server be reached? (Layer 3)
  • Is the port open and accepting connections? (Layer 4)
  • Is the application responding correctly? (Layer 7)

This layered thinking dramatically reduces time spent chasing the wrong problem and helps you diagnose the incidents under pressure.

Performance Issues are Layered Problems

Latency, throughput, and reliability are not just application concerns.

Examples

  • Slow responses due to inefficient JSON serialization → Layer 7
  • High latency caused by TCP retransmissions → Layer 4
  • Packet loss or poor routing → Layer 3

Backend engineers who understand these layers can distinguish between code inefficiency and network behavior, leading to better optimization decisions.

Security Maps Cleanly to OSI Layers

Security is not a single feature, it's layered, just like the OSI model.

  • Layer 7: Authentication, authorization, input validation
  • Layer 6: TLS encryption and certificate handling
  • Layer 4: Firewalls, port filtering
  • Layer 3: IP whitelisting, network segmentation

Without the OSI awareness, it is easy to rely solely on HTTPS and overlook vulnerabilities that exist at lower layers.

Cloud Infrastructure Is OSI in Disguise

Modern backend engineers work in cloud environments where OSI concepts appear everywhere:

  • Load balancers (Layer 4 vs Layer 7)
  • Reverse proxies
  • Kubernetes networking
  • Service mesh
  • CDNs

Understanding OSI turns cloud infrastructure diagrams from abstract boxes into clear, logical systems.

OSI as a System Thinking Tool

Beyond networking, the OSI model teaches principles every backend engineer needs:

  • Separation of concerns
  • Clear boundaries
  • Responsibility isolation
  • Failure containment

These same principles apply to:

  • Clean architecture
  • Microservices
  • Event-driven systems
  • Scalable backend design

Conclusion

The OSI model is not just for network engineers. For backend engineers, it is a thinking framework that improves debugging, performance analysis, security decisions, and system design.

Your code may live at the application layer, but production reality spans all the seven layers hence understanding the OSI model helps you to move from writing backend code to engineering resilient backend systems.
